Product Overview

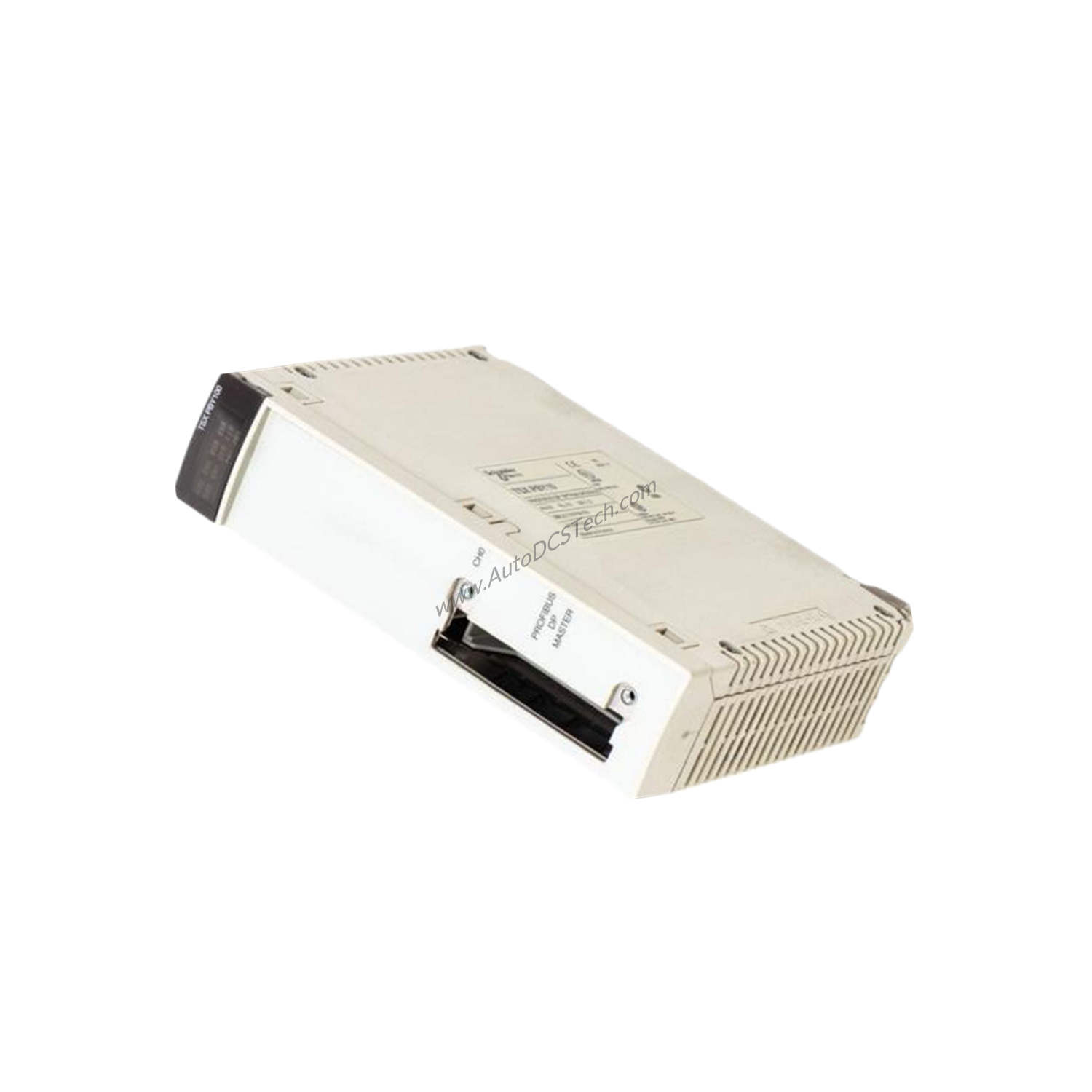

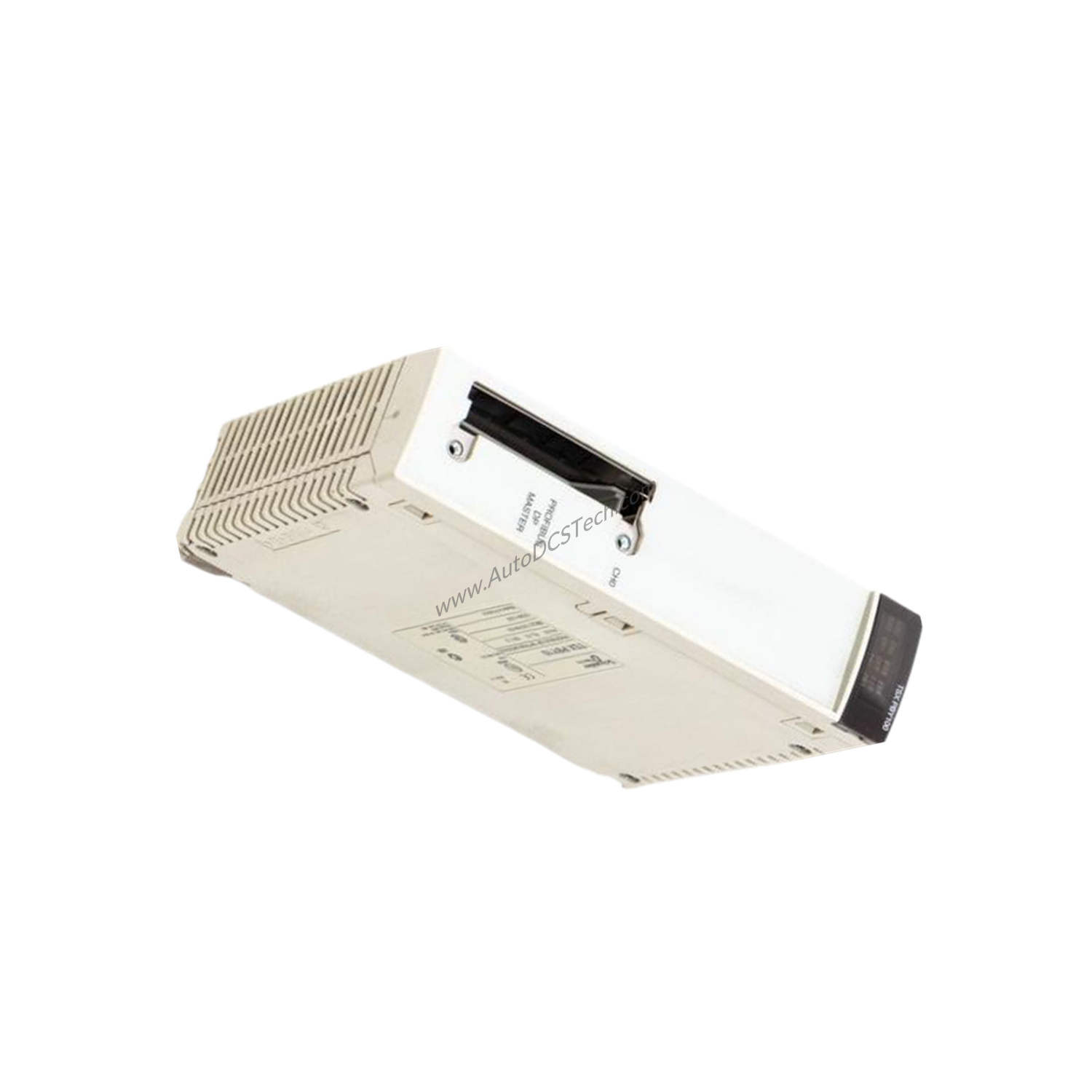

When your industrial network demands reliable Profibus-DP communication, the Schneider TSXPBY100 delivers consistent performance. This option module is part of the TSX Micro PLCs product line and is engineered for seamless integration with Modicon Premium PLCs. As a maintenance engineer, you need components that simplify service and reduce downtime. The TSXPBY100 meets those needs with a robust design and clear specifications.
Technical Specifications Breakdown
The TSXPBY100 operates on a 5 V DC power supply provided by the rack, drawing 400 mA. This low current consumption minimizes load on your system's power budget. The module supports transmission rates from 9.6 Kbit/s to 12 Mbit/s, giving you flexibility for different network speeds. At 9.6 Kbit/s, the maximum segment length reaches 1200 meters, ideal for large-scale installations. With repeaters, you can connect up to 124 slaves, expanding your network's reach. The module handles 4096 inputs and 4096 outputs, ensuring comprehensive data exchange.
Environmental resilience is key for industrial settings. The TSXPBY100 operates from 0 °C to +60 °C and stores from -25 °C to +70 °C. Humidity tolerance of 30% to 95% non-condensing and an altitude rating up to 2000 meters make it suitable for diverse locations. It complies with IEC 68-2-6 for vibration, IEC 68-2-27 for shock, and IEC 1000-4-2 for electrostatic discharge, providing durability in harsh conditions.
Industry Applications
In manufacturing plants, the TSXPBY100 connects PLCs to Profibus-DP networks, enabling real-time control of conveyors, robots, and sensors. For example, in an automotive assembly line, the module's 12 Mbit/s rate ensures fast data transfer for precise coordination. In process industries like chemical plants, the module's wide temperature range and immunity to vibration and shock maintain reliable communication even near heavy machinery. The ability to handle 124 slaves with repeaters supports large distributed systems, reducing the need for additional controllers.
Installation & Setup Guidance
Installing the TSXPBY100 is straightforward. First, power down the rack and insert the module into an available slot. The kit includes a host module for the PCMCIA card, a T-junction box for tapping the main bus, and a Profibus DP PCMCIA card with a 0.6 m integrated connecting cable. Connect the twisted shielded pair cable to the RS485 interface. Set the transmission rate according to your network requirements, using the supported range from 9.6 Kbit/s to 12 Mbit/s. For segments longer than 100 meters at 12 Mbit/s, add repeaters as needed. Verify the module is recognized by your Premium PLC before powering up the system.
Maintenance & Reliability
From a maintenance perspective, the TSXPBY100 requires minimal intervention. Its compliance with IEC standards for vibration, shock, and ESD reduces the risk of failure in demanding environments. Regularly inspect the cable connections and ensure the ambient temperature stays within 0 °C to +60 °C. Check humidity levels to avoid condensation, which can affect performance. The module's 400 mA current draw is stable, but monitor the rack power supply for any fluctuations. Following these simple steps extends the module's service life and prevents unexpected downtime.
Compatibility & Integration
The TSXPBY100 is compatible with Modicon Premium PLCs and also works with Atrium slot-PLCs. It functions as a Profibus DP V0 module kit, supporting master class 1 and master class 2 access methods. The module uses NRZ transmission mode over twisted shielded pair cables. It supports up to 126 server devices and provides communication services like checking slave configuration on power up, managing monitoring requests, and reading/writing DP slave I/O data. This integration capability simplifies network design and ensures smooth data flow.
Selection Guide & Purchasing Advice
Before purchasing the TSXPBY100, verify that your system uses Modicon Premium or Atrium PLCs. Confirm the required transmission rate and segment length for your network. The module supports up to 124 slaves with repeaters, so plan your topology accordingly. SpareTechPLC offers this module with fast shipping and expert support. Check the part number TSXPBY100 and compare with your existing setup to ensure compatibility. For current lifecycle status and availability, contact SpareTechPLC before ordering.
